Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide

Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide
Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide - alternative view 1
Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide - alternative view 2
Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide - alternative view 3
Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide
Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide - alternative view 1
Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide - alternative view 2
Chrome Buckle 3 Point Retractable Seat Belt with Long Sash Guide - alternative view 3
Item #: welr-L-sbs-chrome
$79.95
$83.95
YOU SAVE $4.00 (5%)

  • Info
Sewn, Assembled, Safety Tested and Approved, Packaged in the USA and Federal Safety (FMVSS) #209 & #302 Certified!
This is a special 3-point seat belt with a (8 inch long) long shoulder sash guide for car, truck, box truck, cargo van, motorhome, muscle cars or vans where the shoulder sash guide anchor attachment is higher than a normal passenger car configuration (usually attaches above the side window). The longer guide lowers the shoulder harness so that it is not aligned too high on the neck. Replacement seat belt for sale price.
• 3 Point Retractable Seatbelt • Beautiful Chrome Buckle • 8 inch Long Shoulder Sash Guide
  • FMVSS #209 and #302 Federally Safety Certified.

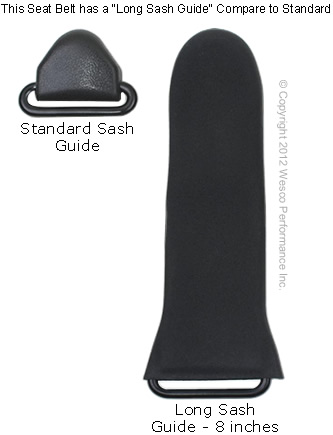

  • Compare the Long Sash to a Standard Sash. Click HereCompares the Long Shoulder Sash Guide That This Seat Belt Has to a Standard Sash.
  • 3 point seat belt which includes both a lap belt and shoulder harness and it is retractable.
  • Sewn, assembled, safety tested and approved and packaged in the USA.

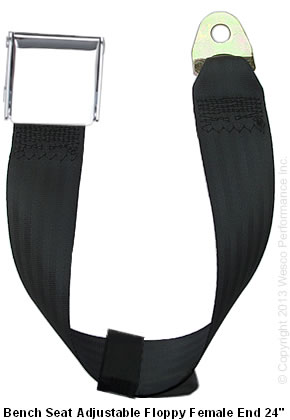

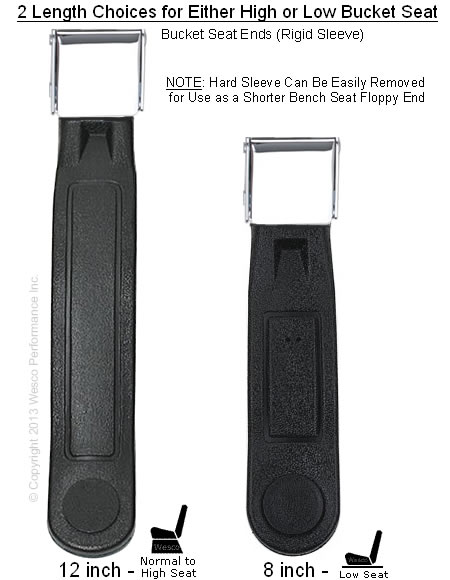

  • Choice of: Adjustable 24 inch Bench Seat End,   8" or 11" Rigid Sleeve End for Low or Normal Bucket Seats.
  • Retro-Style Brilliant Chrome Buckle also Called Airplane or Aviation Style Lift-Lever or Latch Buckle.
  • Price includes 1 seat belt for 1 seat / person.
  • Installation Instructions
  • Works for both passenger or driver side, front and some back seat applications.

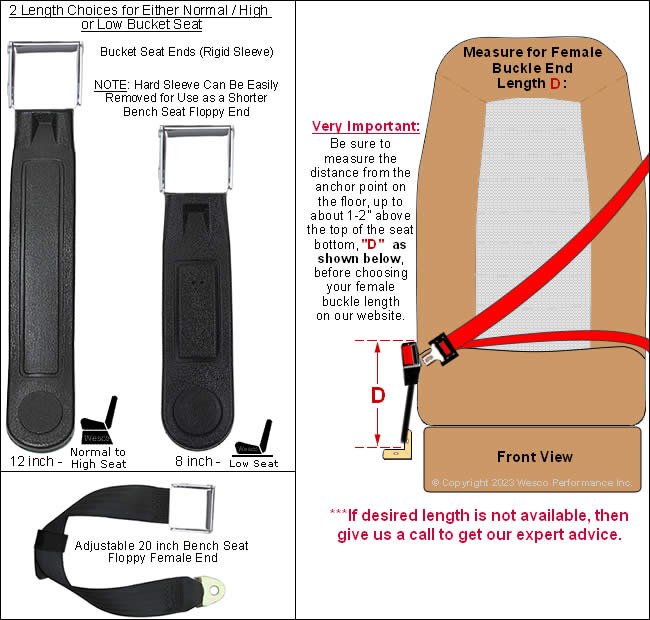

  • Webbing (belt) extends up to 125" out of retractor box. "Hey Wesco! You know everything! How do I figure out what seatbelt length will work?" Easy! Right Here! See Our Seat Belt Measuring Instructions for Install
  • Retracts neatly out of the way when you unbuckle.
  • Equipped with ELR Retractor What's That?

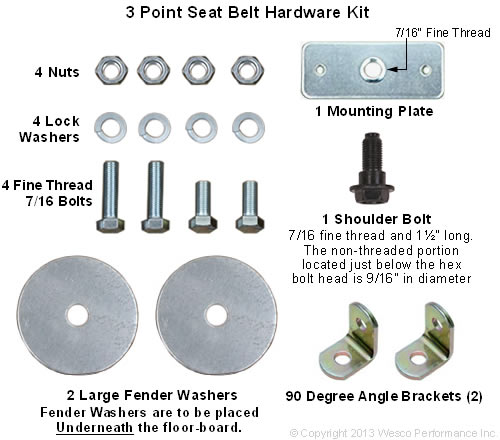

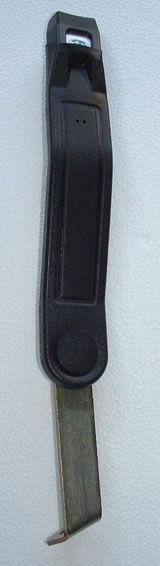

  • For front seat installations with a high middle console (17" or more when measured from floor to top of console), one 6 inch extension bracket # 6-AB is needed for each seat belt installed (front seat). Click Here6 inch extension bracket needed for center consoles that are higher than 17 inches. to see how it attaches to the seat belt end. See our Seat Belt Hardware Page.

    IMPORTANT NOTE: Some colors of seatbelts have a different "C" end than pictured above Click to View Installation Instructions for these restraints.

    Note: These seatbelts do NOT have electrical wiring, so they cannot be electrically wired to alarms or airbags.

    Product Reviews

    5 Stars
    Verified

    Great Seat Belts

    July 12, 2019

    Installed in a 1977 Dodge B-200 Van which did not have shoulder strap belts from the factory. Install was easy, even the wife likes them, work like factory belts, I am very happy, and the color I chose was great too! only one comment. Would be nice if the buckle portion "stood up" better, (Like new ones) to allow for easier insertion of the tang, but not really an issue. That's it, great product!

    Was this rating helpful to you?   Yes No
    4 Stars
    Verified

    Wesco 3-point seat belt review

    June 28, 2018

    I installed Wesco's 3-point seat belt kit (140 inch, welr-L-sbs-chrome) on my 65 Mustang fastback. The items were all high quality. I have several observations: The bolts to attach the 12" bucket seat belt end should be shoulder bolts (like those supplied for the shoulder anchor point) and not the plain bolts supplied, so that metal-to-metal contact is achieved as in typical factory installations. If the supplied seat belt bolts are used, the attachment point must compress the carpet and any padding underneath, compromising the attachment. Also, the buckle would be improved by adopting the sliding type used in modern cars. The supplied buckle must be individually adjusted for each person and if left in that state, then it does not completely retract. This results in some of the belt lying in the floorboard of the rear seat. Lastly, the instructions state to use 1/8" rivets with a 3/8" reach to secure the shoulder anchor plate to the car. However, the holes for the rivets that are drilled in that shoulder anchor point are slightly larger than 3/16". This means that 1/8" rivets of any size will not expand enough to grab the anchor plate (I tried). So 3/16" rivets must be used.

    Hi Joe, thank you for choosing Wesco Performance and for your detailed review! Thank you for letting us know about the incorrect rivet size in the mounting plate installation instructions! We recently changed our source for those plates and we were told that the hole sizes were the same as the previous one. We used a caliper to check the hole size after reading your review and you are exactly correct that 3/16" rivets are required. We have made the correction on all of our instruction web pages, so thank you! You are also correct about the importance of metal to metal contact when mounting hardware to the floor of a vehicle. That is why in all of our installation instructions we state "Mounting hardware to the floor should always have metal-to-metal contact." We have always recommended using a razor blade to cut through the carpet/padding modifying so that is metal to metal and looks clean when finished. Regarding the male buckle portion, we need to stay with our version of that since our seat belts are "universal fit" and can be used in many different applications. Using a free floating one with a stop button would not work in all applications. Thanks again!

    Was this rating helpful to you?   Yes No
    5 Stars
    Verified

    Great product

    November 7, 2017

    The website, the ordering process, and the product are all excellent! The one area in which I would offer a suggestion for improvement would be order communication. After I received the automatically generated confirmation email, I heard nothing for another 10 days. I had to initiate contact and they provided a suitable explanation, but it would have been nice for them to let me know that on their own.


    5 people found this review helpful
    Was this rating helpful to you?   Yes No
