Forklift Seat Belts

Each forklift seat belt is BOTH "Circuit Open" and "Circuit Closed".

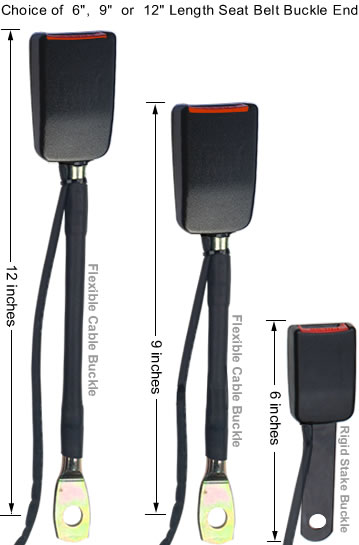

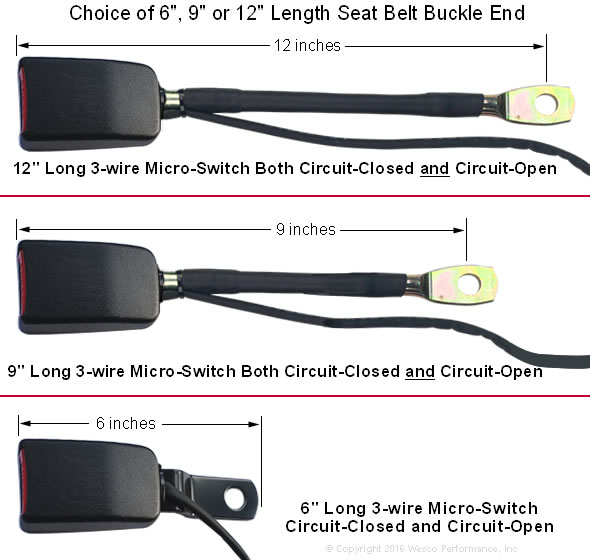

Your choice of either 6 inch, 9 inch or 12 inch long buckle end. Click to See!

These 2" wide belts are retractable and have a 3-wire micro-switch that makes sure that your forklift driver buckles up before driving the lift.

Circuit Open: means that the seat belt must be buckled up before the motor will start, preventing drivers from moving the vehicle until they are buckled up.
Or
Circuit Closed: means that if the seat belt is not buckled when the motor is started, then a bell/buzzer can sound alerting that the driver isn't buckled up.

Wiring Diagram and Instructions show you how to easily wire the belt for either open or closed!

These forklift seat belts work with 12V & 24V Systems.

These are 2-point lap belt only (no shoulder strap) retractable belts. Available in the colors Black and Orange. Federal Motor Vehicle Safety Standards (FMVSS) #209 & #302 Approved and meets Society of Automotive Engineers (SAE) J386 specs.

Webbing (belt) Extends 41-43 inches out of the retractor unit. Add the length of the female buckle end for the Total length from mounting hole to mounting hole.

(Optional mounting hardware kit) Click to View.

Micro-Switch Forklift Tractor Non-Retractable Seat Belt "Circuit Closed" and "Circuit Open"

These 2" wide belts are Non-Retractable and the micro-switch makes sure that your forklift driver buckles up before driving the lift. Federal Motor Vehicle Safety Standards (FMVSS) #209 & #302 Approved and meets Society of Automotive Engineers (SAE) J386 specs. These are 2-point lap belt only (no shoulder strap) Non-Retractable belts that extend to 74 inches. Belt available in Black or Orange.

Your choice of either 6 inch, 9 inch or 12 inch long buckle end. Click to See!

This forklift seat belt is BOTH "Circuit Closed" and "Circuit Open."

Wiring Diagram and Instructions showing how to easily wire for either open or closed.

Circuit Closed: means that if the seat belt is not buckled when the motor is started, then a bell/buzzer can sound alerting that the driver isn't buckled up. Replaces i-1402-circuit-closed.
Or
Circuit Open: means that the seat belt must be buckled up before the motor will start, preventing drivers from moving the vehicle until they are buckled up.

These fork truck seat belts work with 12 volt & 24 volt Systems.

Optional mounting hardware kit Click to View. Click to view our Belt Hardware Page.

This is a retractable 3-point lap and shoulder belt forklift seat belt.

Your choice of either 6 inch, 9 inch or 12 inch long buckle end. Click to See!

These 2" wide belts are retractable and have a 3-wire micro-switch that makes sure that your forklift driver buckles up before driving the lift truck.

Each forklift seat belt is BOTH "Circuit Open" and "Circuit Closed".

Circuit Open: means that the seat belt must be buckled up before the motor will start, preventing drivers from moving the vehicle until they are buckled up.
Or
Circuit Closed: means that if the seat belt is not buckled when the motor is started, then a bell/buzzer can sound alerting that the driver isn't buckled up.

Wiring Diagram and Instructions show you how to easily wire the belt for either open or closed!

These forklift seat belts work with 12V & 24V Systems.

Available in the colors Black and Orange. Federal Motor Vehicle Safety Standards (FMVSS) #209 & #302 Approved and meets Society of Automotive Engineers (SAE) J386 specs.

Webbing (belt) Extends 125 inches out of the retractor unit. Add the length of the female buckle end for the Total length from mounting hole to mounting hole. "Hey Wesco, how do I figure out what seat belt length will work?" No Problem, right here! How to Measure for 3 Point Seat Belt Installation

Equipped with ELR Retractor What's That?

(Optional mounting hardware kit) Click to View.

These easy to install forklift seat belts are Federal Motor Vehicle Safety Standards (FMVSS) #209 & #302 Approved and meets Society of Automotive Engineers (SAE) J386 specs safety harness push button lap belts! These lap belts are Safety tested and approved, assembled, sewn and packaged in the USA.

2 point push button forklift seat belt that adjust to a maximum of 60, 74, 90 or 110 inches total length. Now also 48 inch and 140 inch length Belts.

60" belt female buckle side: 23 inches
74" belt female buckle side: 32 inches
90" belt female buckle side: 42 inches
110" belt female buckle side: 36 inches
140" belt female buckle side: 46 inches
48" belt female buckle side: 20 inches

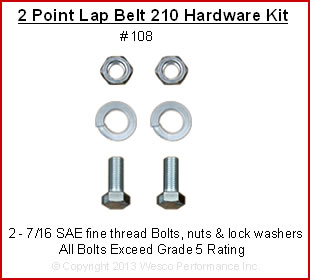

These seatbelts are non-retractable lap belts only (no shoulder harness). They are universal fit so they will work perfectly on any forklift. (Optional mounting hardware kit) Click to View. Each optional 210 hardware kit includes all of the hardware that you need for 1 person, for one seat. --The orange colored belts have black buckle ends. With black, navy, gray, maroon, red, and tan colors, the plastic portion of the buckle color matches the color of the webbing (belt).

Click to view our 2-Point Lap Belt Installation Guide.

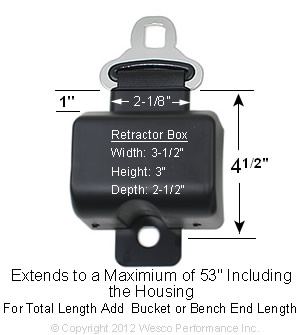

These are 2 point retractable push button seatbelts, lap belt with buckle only (no shoulder harness). These are universal fit, so they are perfect for most any forklift truck. They extend to 53" out of the retractor and of course are Federally approved! This is our Short Housing restraint, meaning that it is best used with a low seat configuration. View DimensionsSeat Belt Webbing Width is 1-7/8 inch. With higher seat applications, choose our Long Housing seatbelt below. (optional mounting hardware kit) Click to View. Click to view our SeatBelt Hardware Page.

Click to view our 2 Point Belt Installation Guide!

View Color Chart

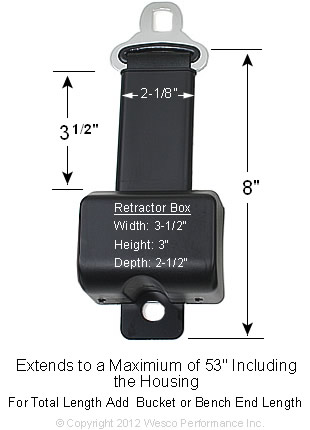

Best used with a higher seat application, this is a 2 point retractable lap belt with buckle only (no shoulder harness). These are universal fit, so they are perfect for most Forklifts. View DimensionsSeat Belt Webbing Width 1-7/8 inch They extend to 53" out of the retractor and of course these seat belts are Federally Safety approved! (The optional mounting hardware includes our 210 hardware kit) Click to View. Click to view our Belt Hardware Page. Click to view our 2 Point Belt Installation Guide!

View Color Choices

OUT OF STOCK These 2" wide belts are retractable, Anti-Cinch and have a micro-switch that makes sure that your forklift driver buckles up before driving the lift. These are 2-point lap belt only (no shoulder strap) retractable belts. Available in the colors Black and Orange. Federal Motor Vehicle Safety Standards (FMVSS) #209 & #302 Approved.

This is the "Circuit Open" model, meaning that the seat belt must be buckled up before the motor will start, preventing drivers from moving the vehicle until they are buckled in.
Wiring Diagram and Instructions

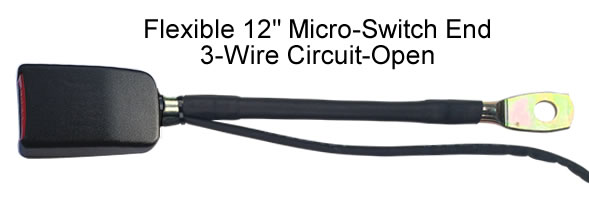

12 inch Flexible End Click Here to view

Webbing (belt) Extends 41-43 inches out of the retractor unit. With 12 inch female buckle end, Total length is 53-55 inches from mounting hole to mounting hole.

(The optional mounting hardware includes our 210 hardware kit) Click to View.
